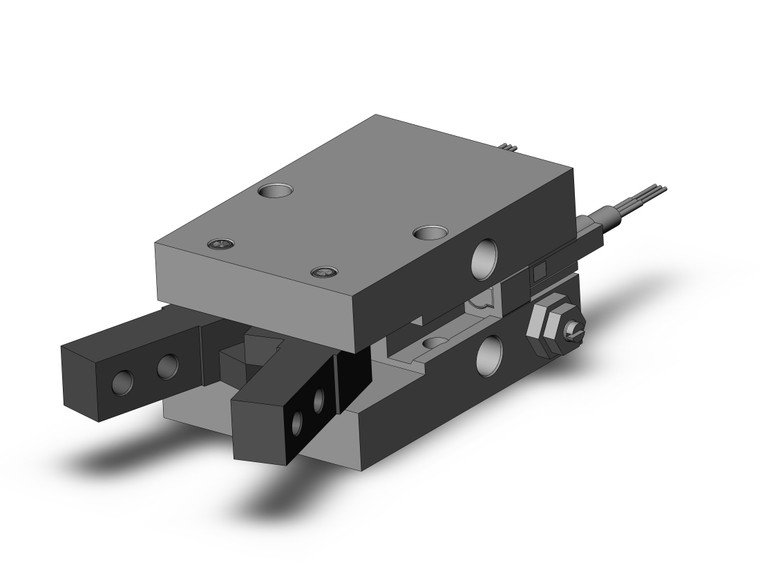

SMC MHC2-16D-M9PL Gripper, Mini Angular Style, Standard

SMC MHC2-16D-M9PL MHC2 Series Air Gripper Angular Style Standard Type Bore Size 10-25

SMC
SKU:
MHC2-16D-M9PL
Availability:
Factory stock
$229.40
Condition:
New
Current Stock:
Description

SMC MHC2-16D-M9PL - MHC2 Series Air Gripper, Angular Style, 16mm Bore, Double-Acting

The SMC MHC2-16D-M9PL is an angular-style pneumatic gripper with a 16mm bore. Double-Acting operation for reliable gripping.

Key Features & Specifications

  • Angular finger opening - efficient workpiece gripping and release
  • Double-Acting operation - reliable grip control
  • Compact body - minimized size for dense tooling
  • Auto switch capable - position sensing
  • Dustproof - sealed for industrial use
  • Bore: 16mm | Angular | Double-Acting

Typical Applications

Ideal for automated assembly, robotic handling, and precision gripping in compact automation cells.

Manufactured by SMC Corporation.

Additional Information
Bore Size:
Bore Size 16 mm
Action:
Double Acting
Finger Material:
None
Auto Switch:
Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
