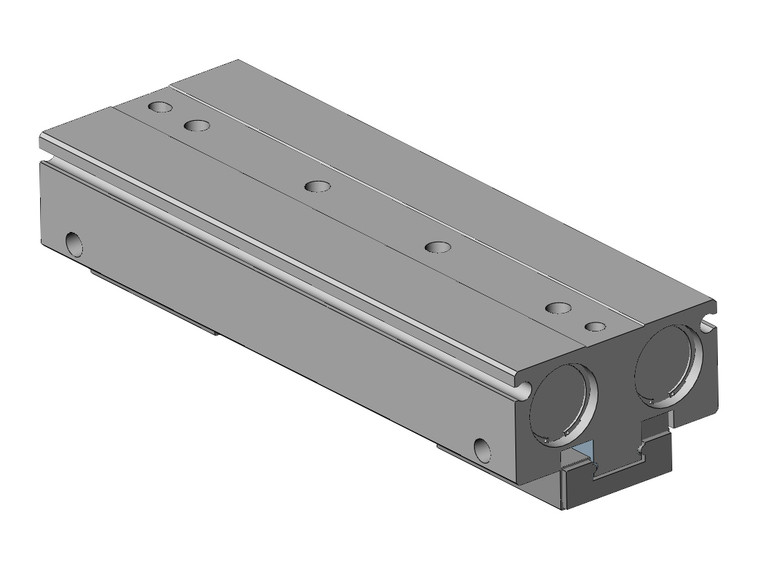

SMC MHF2-16D2R-M9PL MHF2 Series Air Gripper Parallel Style Linear guide Type Compact Type
SMC
$497.65
The SMC MHF2-16D2R-M9PL is a part of the MHF2 Series Air Gripper, designed with a parallel style linear guide for a compact and efficient gripping solution. This air gripper significantly reduces height to approximately one-third of standard grippers, making it ideal for applications where space is limited. Its low-profile design minimizes moment generation, enhancing stability and precision during operation. The MHF2 Series offers versatility with short, middle, and long stroke options, catering to various application needs. Despite its compact size, this air gripper delivers a strong gripping force, thanks to its innovative double piston mechanism, ensuring reliable performance in demanding environments.
- Bore Size:
- Bore Size 16 mm
- Stroke:
- Long Stroke
- Body Option:
- Side Piping Type
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
