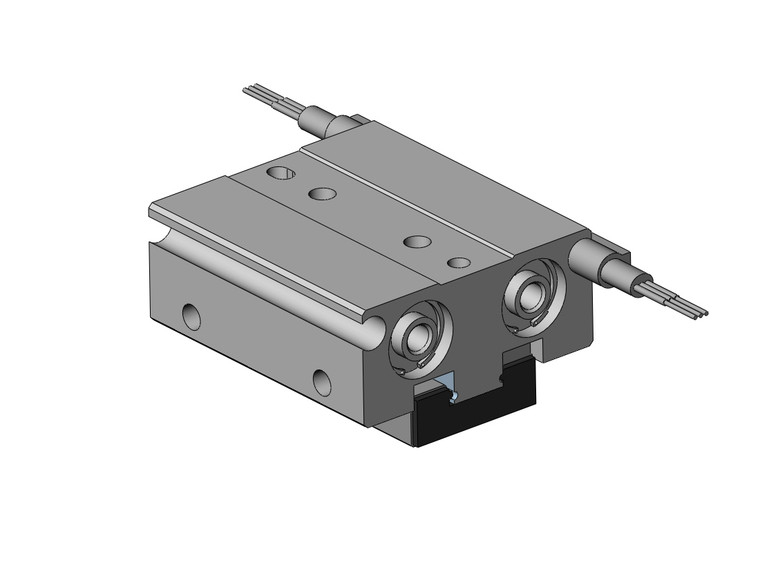

SMC MHF2-8D-M9P MHF2 Series Air Gripper Parallel Style Linear guide Type Compact Type
SMC
$350.95
The SMC MHF2-8D-M9P is a part of the MHF2 Series, featuring a parallel style air gripper with a linear guide type compact design. This innovative gripper reduces the height to approximately one-third of the standard gripper, making it ideal for applications where space is limited. Its low profile design minimizes moment generation, enhancing stability and precision. The MHF2-8D-M9P offers versatility with short, middle, and long stroke options, catering to various operational needs. Despite its compact size, it delivers a robust gripping force thanks to its double piston mechanism, ensuring reliable performance in demanding environments.
- Bore Size:
- Bore Size 8 mm
- Stroke:
- Short Stroke
- Body Option:
- Axial Piping Type
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
