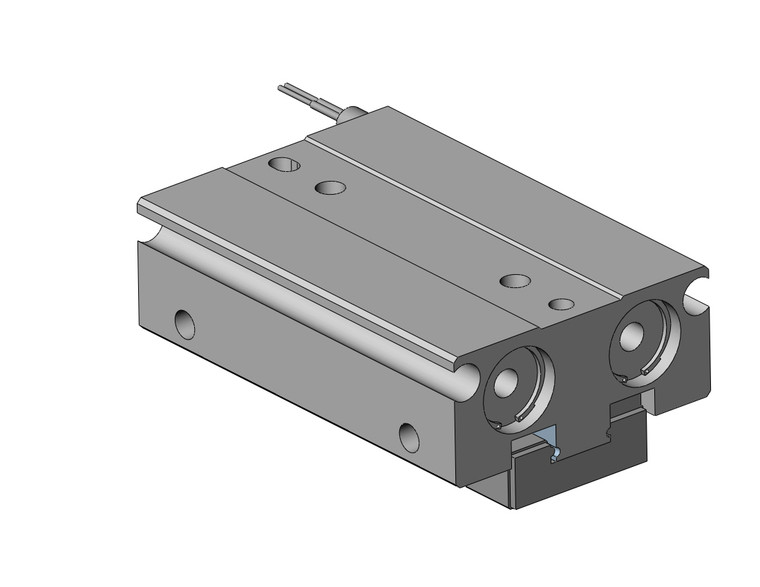

SMC MHF2-8D1R-M9BWS MHF2 Series Air Gripper Parallel Style Linear guide Type Compact Type
SMC
$321.75
The SMC MHF2-8D1R-M9BWS is a part of the MHF2 Series, featuring a parallel style air gripper with a linear guide type compact design. This innovative gripper reduces the height to approximately one-third of the standard gripper, making it ideal for applications where space is limited. Its low profile design minimizes moment generation, enhancing stability and precision. Available in short, middle, and long strokes, this air gripper offers versatility to suit various operational needs. Despite its compact size, it delivers a strong gripping force thanks to the double piston mechanism, ensuring reliable performance in demanding environments.
- Bore Size:
- Bore Size 8 mm
- Stroke:
- Medium Stroke
- Body Option:
- Side Piping Type
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 1 pc.
- Made To Order:
- Standard
