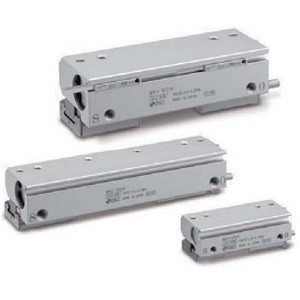

SMC MHF2-8FDR-M9B MHF2-F Series Low Profile Air Gripper/With One Finger Fixed

SMC MHF2-8FDR-M9B MHF2-F Series Low Profile Air Gripper/With One Finger Fixed

SMC
SKU:
MHF2-8FDR-M9B
Availability:
Factory Stock
$366.55
Condition:
New
Current Stock:
Description

MHF2-F Series Low Profile Air Gripper/With One Finger Fixed

  • Width: Max. 25% reduction (40mm?30mm);
  • Weight: Max. 25% reduction (275g?205g);
  • The fixed finger can be set to a reference position;
  • Fixed finger position adjustment function
    • Additional Information
    Number Of Fingers:
    2
    Bore Size:
    8 mm
    Type:
    One Finger Fixed
    Action:
    Double Acting
    Stroke:
    Short Stroke
    Piping Position:
    Side Piping
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    2 pcs. Or None
