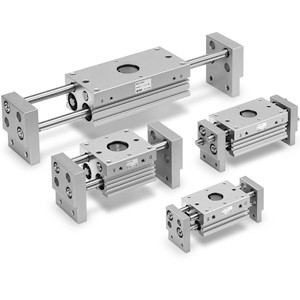

SMC MHL2-10D1Z-M9PZ MHL2-Z Series Wide Type Parallel Style Air Gripper
SMC
$462.50
The SMC MHL2-10D1Z-M9PZ MHL2-Z Series Wide Type Parallel Style Air Gripper is engineered for precision and efficiency. Featuring a bore size of 32 and 40, this air gripper is designed to be lightweight, achieving a maximum weight reduction of 10% from 585 g to 525 g. This reduction is accomplished through innovative changes in the body shape and internal construction. The gripper comes with a built-in dust protection mechanism as standard, ensuring durability and reliability in various environments. For specialized needs, a dust-resistant option is available as a made-to-order feature (-X85, -X86m). Additionally, the gripper offers a closing width adjusting option, also available as a made-to-order feature (-X28), providing flexibility and adaptability for diverse applications.
- Number Of Fingers:
- 2
- Bore Size:
- 10 mm
- Port Thread Type:
- M Thread(?10~?25),Rc(?32~?40)
- Action:
- Double Acting
- Opening/Closing Stroke[mm]:
- ?10:40 mm,?16:60 mm,?20:80 mm,?25:100 mm,?32:120 mm,?40:160 mm
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
