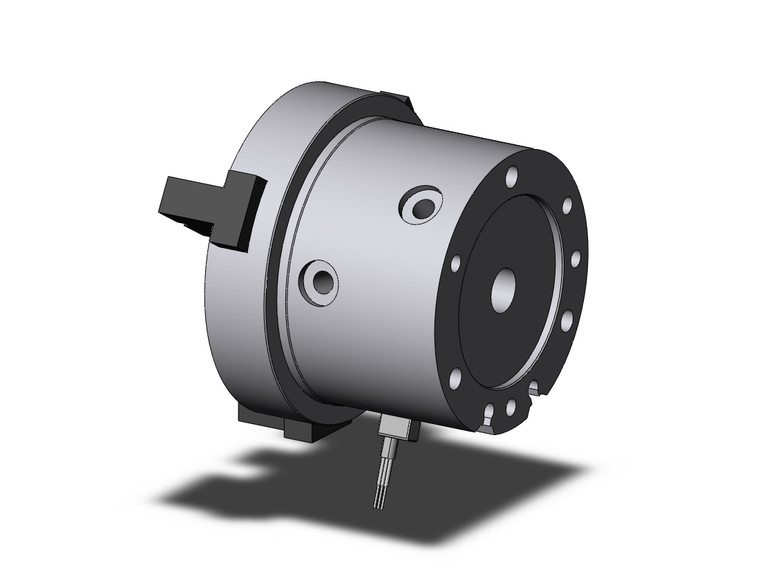

SMC MHSH3-40D-M9PWVLS MHSH3 Series Air Gripper Parallel Style Slide guide Type Round body 3Finger Through-hole Type
SMC
$550.15
The SMC MHSH3-40D-M9PWVLS is a high-performance air gripper designed for precision and efficiency in industrial applications. This model features a parallel style slide guide with a round body and a unique 3-finger through-hole design, making it perfect for gripping cylindrical workpieces securely. Its vertically compact and lightweight construction is achieved through a wedge-shaped cam, ensuring ease of use and installation. The air gripper is particularly suited for operations where external force is applied, such as press fitting tasks, thanks to its robust design. With a repeatability of ±0.01 mm, it guarantees consistent performance and accuracy. The long stroke type offers strokes that are twice as long as the standard type, providing greater flexibility and adaptability in various applications. Additionally, the through-holes and center pusher ensure reliable removal of workpieces, enhancing operational efficiency. Ideal for industries requiring precise handling and manipulation of components, the SMC MHSH3-40D-M9PWVLS is a versatile and dependable choice.
- Dust Cover:
- None
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- M thread(?16to?63)?Rc(?80)
- Center pusher:
- Without center pusher
- Dust cover type(with dust cover only):
- Without Dust Cover Type/Chloroprene Rubber (CR)
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 1 pc.
- Made To Order:
- Standard
