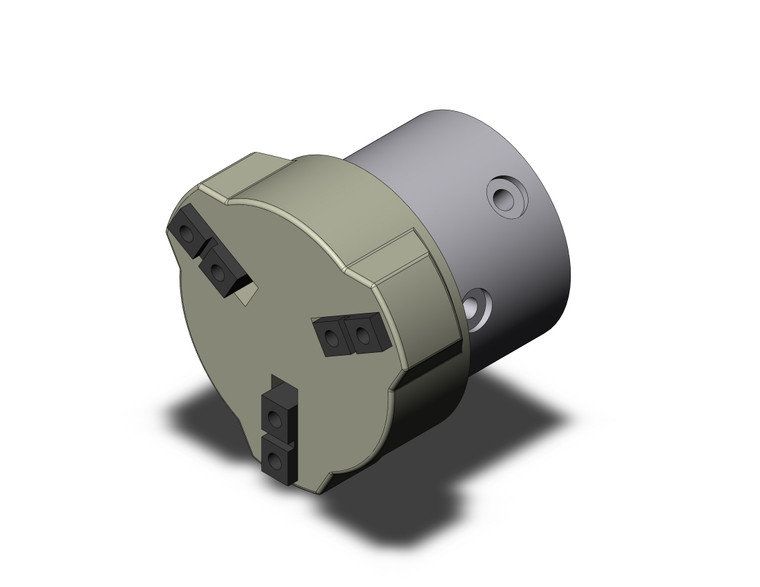

SMC MHSJ3-32D-M9PSAPC MHSJ3 Series Air Gripper Parallel Style Slide guide Type Round body 3Finger With dust cover Type
SMC
$571.45
The SMC MHSJ3-32D-M9PSAPC is a versatile air gripper designed for precision and efficiency. Its parallel style slide guide and round body with a 3-finger configuration make it ideal for handling cylindrical workpieces. The gripper is vertically compact and lightweight, thanks to its innovative wedge-shaped cam construction, making it perfect for operations where external force is applied, such as press fitting. With a repeatability of ±0.01 mm, it ensures consistent performance. The long stroke type offers strokes that are twice as long as the standard type, providing greater flexibility in various applications. Additionally, the gripper features a dust cover for enhanced durability and reliable removal of workpieces with through-holes and a center pusher.
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- M thread(?16to?63)?Rc(?80)
- Dust Cover Type:
- Chloroprene Rubber (CR)
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
