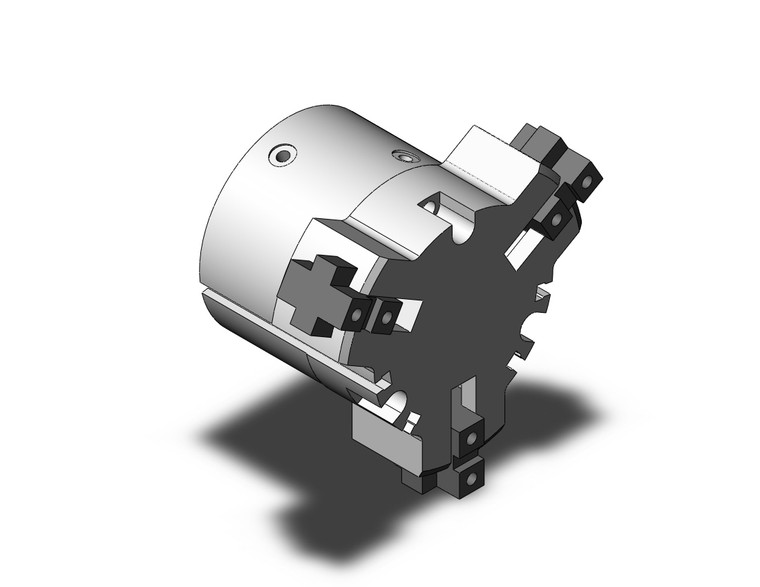

SMC MHSL3-63D-M9BWVSDPC MHSL3 Series Air Gripper Parallel Style Slide guide Type Round body 3Finger Long Stroke Type
SMC
$395.40
The SMC MHSL3-63D-M9BWVSDPC is a cutting-edge air gripper designed for precision and efficiency. This MHSL3 Series model features a parallel style slide guide with a round body and a unique 3-finger long stroke type, making it perfect for handling cylindrical workpieces. Its vertically compact and lightweight design is achieved through a wedge-shaped cam construction, ensuring ease of use and maneuverability. This air gripper is ideal for operations where external force is applied, such as press fitting tasks, thanks to its robust construction and reliable performance. With a repeatability of ±0.01 mm, it guarantees consistent and accurate results. The long stroke type offers strokes that are twice as long as the standard type, providing enhanced versatility and capability. Additionally, the gripper ensures the reliable removal of workpieces with through-holes and a center pusher, making it a dependable choice for various industrial applications.
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- M thread(?16to?63)?Rc(?80to?125)
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, Perpendicular, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
