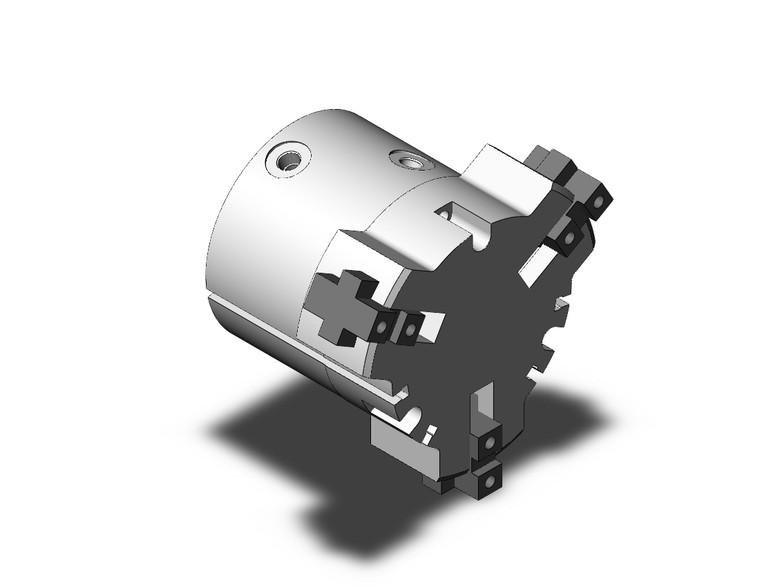

SMC MHSL3-80TND-M9PWLS gripper mhs, parallel style air gripper

SMC MHSL3-80TND-M9PWLS MHSL3 Series Air Gripper Parallel Style Slide guide Type Round body 3Finger Long Stroke Type

SMC
SKU:
MHSL3-80TND-M9PWLS
Availability:
Contact us to confirm availability and lead times.
$766.60
Condition:
New
Current Stock:
Description

MHSL3 Series Air Gripper Parallel Style Slide guide Type Round body 3Finger Long Stroke Type

  • Vertically compact, lightweight due to the wedge shaped cam construction;
  • Ideal for operations which external force is applied to, such as press fitting operations;
  • Repeatability: ±0.01 mm;
  • Long stroke type: Strokes two times longer than the standard type;
  • Gripping of cylindrical workpieces;
  • Reliable removal of the workpiece with through-holes and a center pusher
    • Additional Information
    Bore Size:
    Bore Size 80 mm
    Port Thread Type:
    NPT
    Auto Switch:
    2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    1 pc.
    Made To Order:
    Standard
