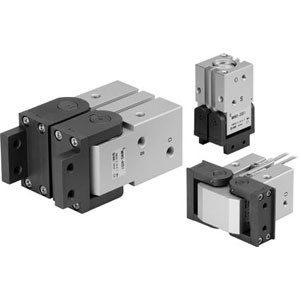

SMC MHW2-25D-M9BWL MHW2 Series Air Gripper 180°Angular Style Pinion Style
SMC
$479.55

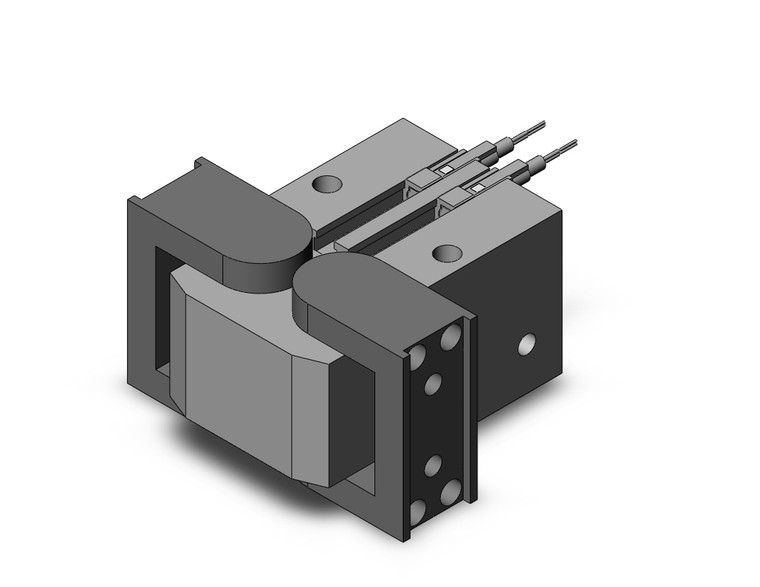

SMC MHW2-25D-M9BWL - MHW2 Series Air Gripper, 180° Angular, Rack & Pinion Style, 25mm Bore
The SMC MHW2-25D-M9BWL is a pneumatic gripper featuring 180° angular finger opening for space-efficient gripping in low-clearance applications.
Key Features & Specifications
- 180° angular finger opening - fingers rotate perpendicular to body for space-saving retracted position
- Rack & pinion mechanism - delivers consistent, reliable gripping force throughout the cycle
- X-Y plane movement - retracted finger position enables unobstructed travel to work location
- Unique seal design - shorter overall length with constant grip strength during open/close
- Dustproof structure with key connection for excellent impact resistance
- Auto switch capable - up to 4 mounting locations for position sensing
- Bore Size: 25mm | 180° Angular | Rack & Pinion Drive
Typical Applications
Ideal for automated pick-and-place, robotic part handling, machine tending, and assembly operations where vertical clearance is limited.
Manufactured by SMC Corporation.
- Bore Size:
- 25 mm
- Port Thread Type:
- M Thread,Rc
- Finger Option:
- Flat Type Fingers(Standard)
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
