SMC MHW2-40TFD-M9PWSDPC MHW2 Series Air Gripper 180°Angular Style Pinion Style
SMC
$735.35

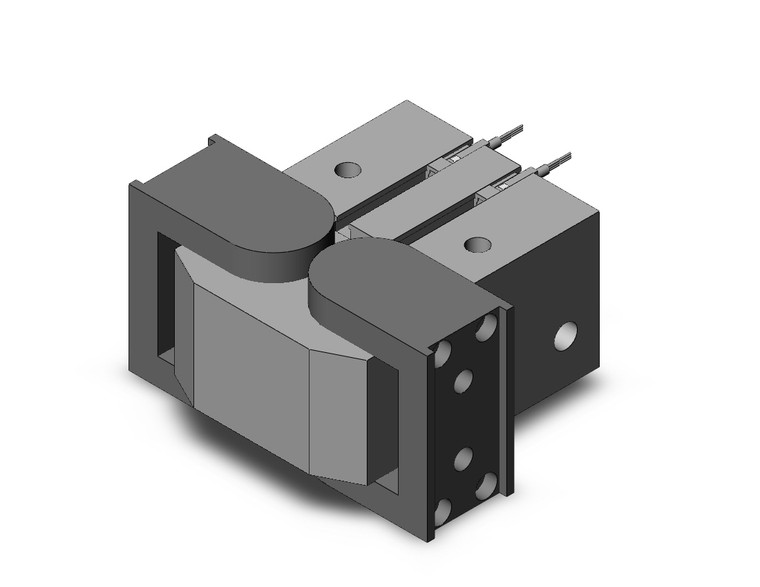

SMC MHW2-40TFD-M9PWSDPC - MHW2 Series Air Gripper, 180° Angular, Rack & Pinion Style, 40mm Bore
The SMC MHW2-40TFD-M9PWSDPC provides space-saving gripping action with fingers that rotate 180° perpendicular to the gripper body.
Key Features & Specifications
- 180° angular finger opening - fingers rotate perpendicular to body for space-saving retracted position
- Rack & pinion mechanism - delivers consistent, reliable gripping force throughout the cycle
- X-Y plane movement - retracted finger position enables unobstructed travel to work location
- Unique seal design - shorter overall length with constant grip strength during open/close
- Dustproof structure with key connection for excellent impact resistance
- Auto switch capable - up to 4 mounting locations for position sensing
- Bore Size: 40mm | 180° Angular | Rack & Pinion Drive
Typical Applications
Ideal for machine loading/unloading, test fixture handling, and confined-space gripping in automated production systems.
Manufactured by SMC Corporation.
- Bore Size:
- 40 mm
- Port Thread Type:
- G
- Finger Option:
- Flat Type Fingers(Standard)
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
