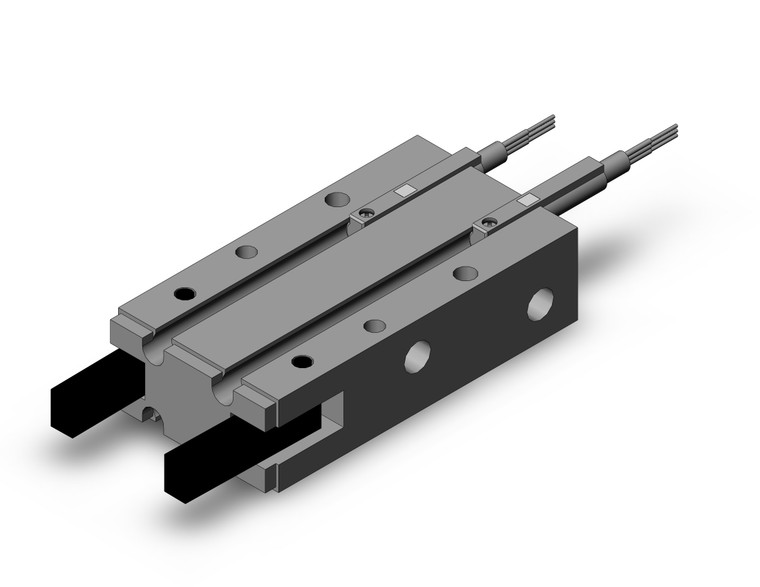

SMC MHY2-10D-M9PZ Air Gripper, 180 Degree Angular Style

(No reviews yet) Write a Review
SKU:
MHY2-10D-M9PZ
Condition:
New
Manufacturer Part #:
MHY2-10D-M9PZ
Finger Option:
Standard Tap Mounting
Number of Ports:
2 pcs. (Or None in the Case of No Switch)
Bore Size:
10mm
Lead or Prewired Connector:
5m
Auto Switch:
Solid State, Gen. Purpose, 3 Wire PNP, Horizontal, 0.5M
$248.85

Description

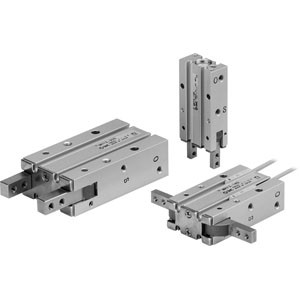

MHY2, Air Gripper, 180° Angular, Cam Style

This compact 180 angular gripper uses a cam style mechanism for a reliable gripping force. Its fingers can rotate back perpendicular to the gripper body for space saving where vertical clearance is limited.
-

- Bore sizes: 10, 16, 20, 25 mm
- Auto switch capable
- Option for NSF-H1, food grade lubricant
-

Series Catalog

AutoCAD File
