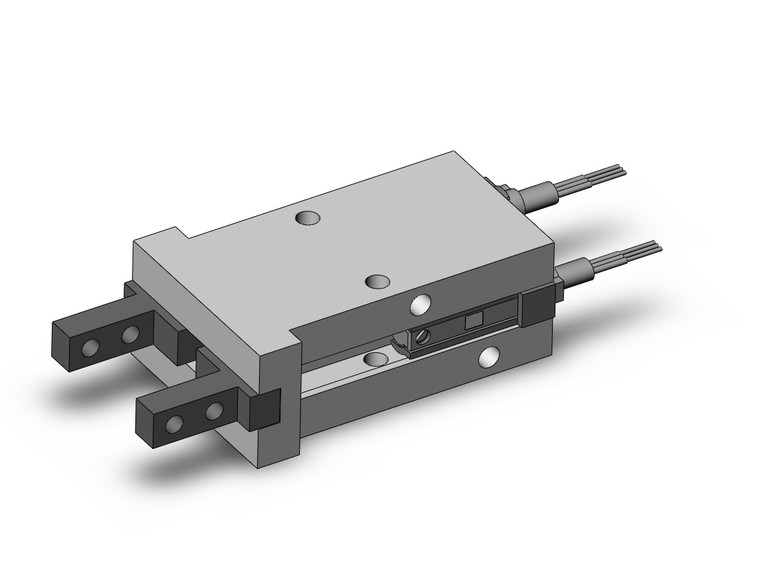

SMC MHZ2-10D-M9PWSAPC MHZ2 Series Air Gripper Parallel Style Linear guide Type Standard Type Bore Size?10-25
SMC
$267.80
The SMC MHZ2-10D-M9PWSAPC is a high-performance air gripper from the MHZ2 Series, designed for precision and reliability in industrial applications. This parallel style air gripper features a linear guide type that enhances both rigidity and accuracy, ensuring optimal performance in demanding environments. With a standard bore size ranging from 10 to 25, it is versatile enough to accommodate various gripping needs. The construction is both dustproof and dripproof, providing durability and longevity even in challenging conditions. Additionally, users have the option to select the dust cover material, allowing for customization based on specific application requirements. Whether for automation, assembly, or material handling, the SMC MHZ2-10D-M9PWSAPC is engineered to deliver exceptional gripping performance.
- Bore Size:
- Bore Size 10 mm
- Action:
- Double Acting
- Finger Position/Option:
- Standard Basic Type
- Body Option:
- Basic Type
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
