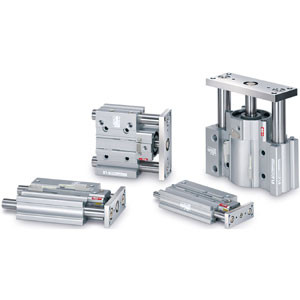

SMC MLGPM50-50Z-B-M9PWL Guide Cylinder With Fine Lock

SMC MLGPM50-50Z-B-M9PWL MLGP-Z Series Compact Guide Cylinder With Lock

SMC
SKU:
MLGPM50-50Z-B-M9PWL
$516.60
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

MLGP-Z Series Compact Guide Cylinder With Lock

  • Stopping possible at any stroke position; Drop prevention when the pressure is decreased or the residual pressure is released;
  • Weight reduced by up to 17% with a shorter guide rod and thinner plate; Guide rod: Max. 22 mm shorter (Compared with the existing MLGPM);
  • Small auto switches or magnetic field-resistant auto switches can be directly mounted on two surfaces
    • Additional Information
    Bearing Type:
    Slide Bearing
    Bore Size:
    Bore Size 50 mm
    Port Type:
    Rc
    Cylinder Stroke:
    Standard Stroke 50 mm
    Lock Direction:
    Retraction Locking
    Auto Switch:
    2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
