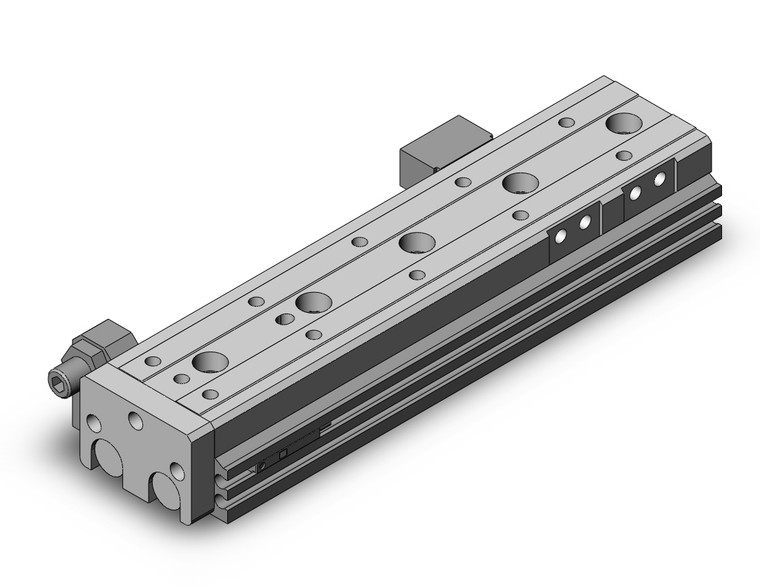

SMC MXQ12-100CS-M9BWLS MXQ Series Air Slide Table
SMC
$662.05
The SMC MXQ12-100CS-M9BWLS MXQ Series Air Slide Table is designed for applications requiring high precision and rigidity. This advanced air slide table integrates the guide rail and the table into a single unit, ensuring seamless operation and enhanced stability. Utilizing a recirculating linear guide, it delivers exceptional performance with high rigidity, making it ideal for demanding industrial environments. Whether you're looking to improve accuracy or increase efficiency, the MXQ Series Air Slide Table is engineered to meet your needs with precision and reliability.
- Bore Size:
- Bore Size 12 mm
- Port Thread Type:
- M Thread,Rc
- Symmetric:
- Standard Type
- Cylinder Stroke:
- Standard Stroke 100 mm
- Adjuster Option:
- Extension End Metal Stopper
- Functional Option:
- Standard
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 1 pc.
- Made To Order:
- Standard
