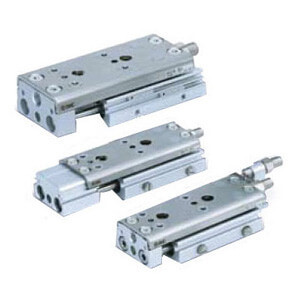

SMC MXQ12A-50ZE1-M9BL MXQA Series Air Slide Table Double Ported Type
SMC
$488.75
The SMC MXQ12A-50ZE1-M9BL MXQA Series Air Slide Table Double Ported Type is engineered for enhanced performance and efficiency. This innovative air slide table boasts a 10% reduction in height, measuring just 27 mm compared to the previous model's 30 mm, making it ideal for compact applications. Additionally, it offers a significant 22% reduction in product weight, now weighing only 298 g, down from 380 g, which facilitates easier handling and installation. The MXQA Series also delivers a remarkable 64% improvement in allowable kinetic energy, accommodating up to 0.09 J, compared to the previous model's 0.054 J. This makes it a superior choice for applications requiring high precision and reliability.
- Bore Size:
- Bore Size 12 mm
- Body Option:
- Both Sides Piping Type
- Stroke:
- Stroke 50 mm
- Adjuster Option:
- Extension End Rubber Stopper
- Functional Option:
- With Buffer
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
