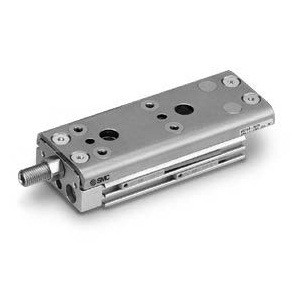

SMC MXQ12B-100ZB-M9BL MXQB Series Air Slide Table Low Thrust With High Rigidity Type
SMC
$570.70
The SMC MXQ12B-100ZB-M9BL MXQB Series Air Slide Table is engineered for applications requiring low thrust and high rigidity. This advanced model boasts a 10% reduction in height, measuring just 27 mm compared to the previous 30 mm, making it more compact and versatile for various setups. Additionally, the product weight has been reduced by 22%, now weighing only 298 g, which enhances ease of installation and handling. The allowable kinetic energy has seen a significant improvement of 64%, now accommodating up to 0.09 J, compared to the previous 0.054 J. This makes the MXQB Series Air Slide Table an ideal choice for operations demanding precision and efficiency.
- Bore Size:
- Bore Size 12 mm
- Body Option:
- Low Thrust With High Rigidity Type Standard Type
- Stroke:
- Stroke 100 mm
- Adjuster Option:
- Extension End Metal Stopper With Bumper
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
