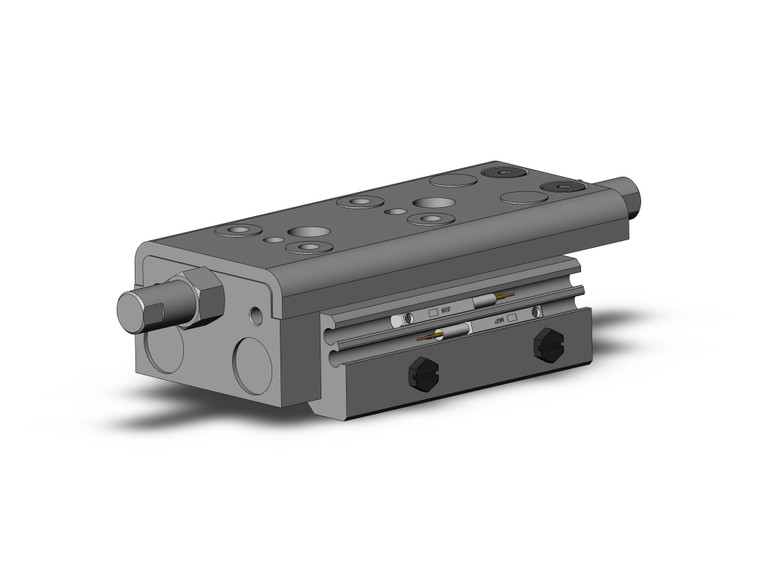

SMC MXQ16-20ZG-M9PSAPC MXQ Series Air Slide Table Height interchangeable type
SMC
$635.35
The SMC MXQ16-20ZG-M9PSAPC MXQ Series Air Slide Table is a height interchangeable type designed for enhanced performance and efficiency. This model boasts a 10% reduction in height, measuring at 27 mm compared to the previous 30 mm, making it more compact and versatile for various applications. Additionally, it features a significant 22% reduction in product weight, now at 298 g, which facilitates easier handling and installation. The allowable kinetic energy has been improved by 64%, offering a capacity of 0.09 J, compared to the previous model's 0.054 J, ensuring better energy management and operational efficiency. Ideal for industries seeking reliable and efficient air slide table solutions, this product delivers superior performance with its advanced design enhancements.
- Bore Size:
- Bore Size 16 mm
- Body Option:
- Standard Type
- Stroke:
- Stroke 20 mm
- Adjuster Option:
- Extension End Shock Absorber RJ + Retraction End Shock Absorber RJ
- Functional Option:
- Standard
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
