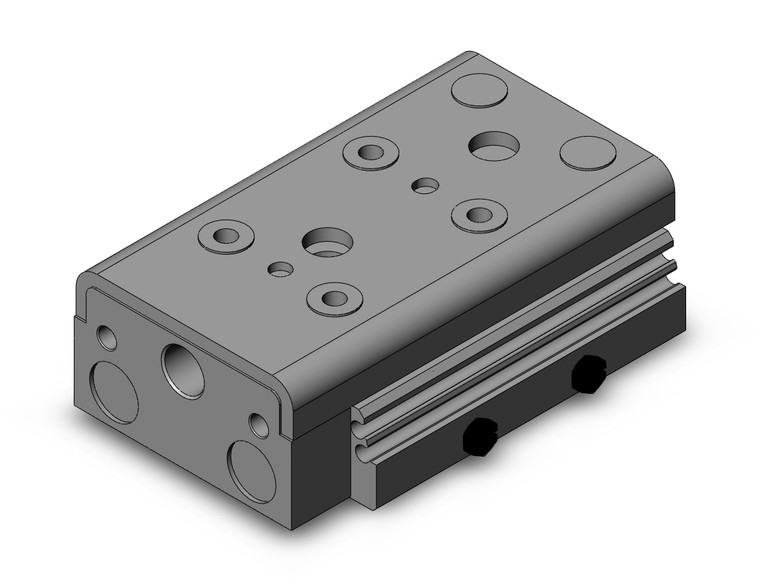

SMC MXQ16B-20ZN Cylinder, Air Slide Table

(No reviews yet) Write a Review
SKU:
MXQ16B-20ZN
Condition:
New
$308.85

Related Products

Related Products

SMC MXQ16A-20ZN cylinder, slide table

SMC MXQ16A-20ZN Cylinder, Air Slide Table

$281.50
MXQ*A, Precision Slide Table (Recirculating Bearings) - Standard Double PortedThe MXQ*A is the newest generation of precision slide tables integrated with hardened stainless steel guides and rails to...
MXQ16A-20ZN
SMC MXQ16B-100Z Guided Cylinder

SMC MXQ16B-100Z Guided Cylinder

$484.20
MXQ*B, Precision Slide Table (Recirculating Bearings) - Low Thrust with High RigidityThe MXQ*B is the newest generation of precision slide tables integrated with hardened stainless steel guides and...
MXQ16B-100Z
<h2>MXQ*B, Precision Slide Table (Recirculating Bearings) - Low Thrust with High Rigidity</h2><p><h3>The MXQ*B is the newest generation of precision slide tables integrated with hardened stainless steel guides and rails to isolate the load bearing from the movement of the dual rods and piston seals. The MXQ*B has higher rigidity than the MXQ*A type for equivalent bore sizes, or can be down sized one bore size for equivalent rigidity requirements to save on air consumption. Its recirculating ball bearings are matched by size to each slide table with a slight negative clearance resulting in greater accuracy. The MXQ s thinly formed special stainless steel slide table reduces thickness allowing for a larger guide pitch providing high rigidity. The slide table s reduced weigh also increases allowable kinetic energy. The stoppers and shock absorbers are positioned at the center axis to minimize load deflection. The dowel pin holes positioned on the center axis standardizes mounting conditions for the basic and symmetric styles. The end lock option prevents the slide table from dropping in vertical applications, enhancing safety in the event of air pressure loss.</h3>- Bore sizes: 6, 8, 12, 16, 20 mm<br>- Repeatable positioning accuracy: +/-0.05 mm<br>- Stroke adjuster options: rubber, metal stopper or shock absorber<br>- PTFE grease or food grade grease option<br>- RoHS compliant<br>- Auto switch capable<br>- <p><a href="https://content2.smcetech.com/pdf/MXQ_A.pdf" target="_blank">Series Catalog</a>
