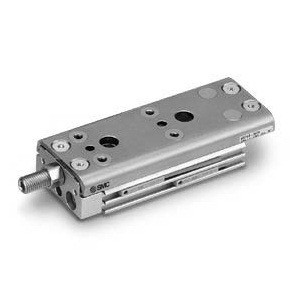

SMC MXQ8C-50Z1 MXQC Series Air Slide Table Single ported type
SMC
$340.40
SMC MXQ8C-50Z1 - MXQ Series Precision Air Slide Table, 8mm Bore, 50mm Stroke
The SMC MXQ8C-50Z1 is a precision air slide table featuring thin stainless-steel construction with a 8mm bore and 50mm stroke. This standard configuration delivers smooth, repeatable linear motion for compact automation applications.
Key Features & Specifications
- Thin stainless steel body - lightweight, corrosion-resistant construction for clean and demanding environments
- High-precision linear guide - recirculating ball bearing slide ensures smooth, accurate travel with minimal deflection
- Adjustable stroke end - fine-tune travel distance for precise positioning without external stoppers
- Dual port options - configurable for single-acting or double-acting operation based on application needs
- Auto switch capable - up to 2 auto switch mounting positions for position detection and cycle feedback
- Low-profile design - minimal height enables integration into space-constrained machine layouts
- Bore Size: 8mm | Stroke: 50mm | Precision Slide Table
Typical Applications
Ideal for precision positioning, inspection stations, and compact transfer systems in electronics and semiconductor manufacturing.
Manufactured by SMC Corporation.
- Bore Size:
- Bore Size 8 mm
- Body Option:
- Single Side-ported Type Standard Type
- Stroke:
- Stroke 50 mm
- Adjuster Option:
- Without Adjuster
- Functional Option:
- With Buffer
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
