SMC MXQR8-50BSAT-M9BV Cyl, Air Slide Table, Reversible, Asw

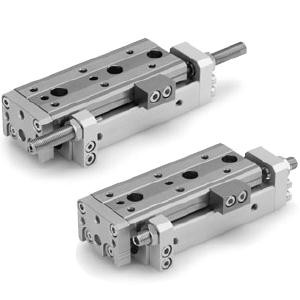

SMC MXQR8-50BSAT-M9BV MXQR Series Air Slide Table Reversible Type

SMC
SKU:
MXQR8-50BSAT-M9BV
Availability:
Factory Stock
$629.50
Condition:
New
Current Stock:
Description

MXQR Series Air Slide Table Reversible Type

  • Integrated guide rail and table;
  • Adoption of recirculating linear guide realized high rigidity and high accuracy;
  • Position of the piping and adjusters can be changed on site according to the installation conditions;
  • Installation compatibility with the series MXQ ;
  • Shock absorber also available for ?6;
  • Soft type / short stroke type shock absorber (RJ) can be mounted
    • Additional Information
    Bore Size:
    Bore Size 8 mm
    Port Thread Type:
    ?6-?16:M Thread
    Adjuster position set at the time of shipment:
    Right
    Stroke:
    Stroke 50 mm
    Adjuster Option:
    Extension Stroke End Shock Absorber RB + Retraction Stroke End Adjuster (Rubber Stopper)
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, Perpendicular, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
