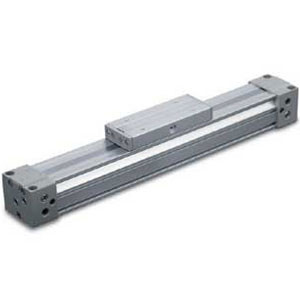

SMC MY1B25G-1000L6Z-M9PSBPC MY1B Series Mechanically Jointed Rodless Cylinder Basic Type

SMC MY1B25G-1000L6Z-M9PSBPC MY1B Series Mechanically Jointed Rodless Cylinder Basic Type

SMC
SKU:
MY1B25G-1000L6Z-M9PSBPC
Availability:
Factory Stock
$587.75
Condition:
New
Current Stock:
Description

MY1B Series Mechanically Jointed Rodless Cylinder Basic Type

  • Remodeled to make it lighter;
  • Weight reduced by up to 17%. (compared to the existing MY1B series);
  • Auto switches can be mounted from the front;
  • Attraction method of the dust seal band is changed;
  • Mounting dimensions and outer dimensions are the same
    • Additional Information
    Bore Size:
    Bore Size 25 mm
    Port Thread Type:
    Rc
    Piping:
    Centralized Piping Type
    Cylinder Stroke:
    Standard Stroke 1000 mm
    Stroke Adjusting Unit Symbol:
    Left Side:L With Low Load Shock Absorber+Adjustment Bolt(Bore Size 16mm Without Adjustment Bolt),With Short Spacer,Right Side:L With Low Load Shock Absorber+Adjustment Bolt(Bore Size 16mm Without Adjustment Bolt),With Short Spacer
    Auto Switch:
    Solid State Auto Switch, With Pre-wired Connector M8-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
