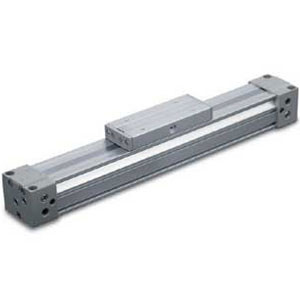

SMC MY1B32TN-800LZ-M9PZ MY1B Series Mechanically Jointed Rodless Cylinder Basic Type

(No reviews yet) Write a Review
SKU:
MY1B32TN-800LZ-M9PZ
MPN:
MY1B32TN-800LZ-M9PZ
Condition:
New
Bore Size:
Bore Size 32 mm
Port Thread Type:
NPT
Piping:
Standard Type
Cylinder Stroke:
Standard Stroke 800 mm
Stroke Adjusting Unit Symbol:
Left Side:L With Low Load Shock Absorber+Adjustment Bolt(Bore Size 16mm Without Adjustment Bolt),Right Side:L With Low Load Shock Absorber+Adjustment Bolt(Bore Size 16mm Without Adjustment Bolt)
Auto Switch:
Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
  • SMC MY1B32TN-800LZ-M9PZ Cylinder, Rodless, Mechanically Jointed
  • SMC MY1B32TN-800LZ-M9PZ MY1B Series Mechanically Jointed Rodless Cylinder Basic Type
$686.75

Description

MY1B Series Mechanically Jointed Rodless Cylinder Basic Type

  • Remodeled to make it lighter;
  • Weight reduced by up to 17%. (compared to the existing MY1B series);
  • Auto switches can be mounted from the front;
  • Attraction method of the dust seal band is changed;
  • Mounting dimensions and outer dimensions are the same
