SMC MY1H25TF-50A6L6Z-M9NAMDPC Cylinder, Rodless

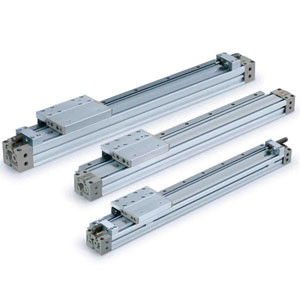

SMC MY1H25TF-50A6L6Z-M9NAMDPC MY1H Series Mechanically Jointed Rodless Cylinder Linear Guide Type

SMC
SKU:
MY1H25TF-50A6L6Z-M9NAMDPC
Availability:
Factory stock
$758.70
Condition:
New
Current Stock:
Description

MY1H Series Mechanically Jointed Rodless Cylinder Linear Guide Type

  • Piping can be connected from 4 directions on the head cover;
  • Allows on-site piping to suit the installation conditions;
  • Easy adjustment of cushion needle; Adjustment is easier by changing the cushion needle adjustment; from side to top;
  • Auto switch can be mounted in any desired position. (D-M9 , D-A9 );
  • New dust seal band improves life;
  • The mounting and performance are the same as before, but the; weight is reduced
    • Additional Information
    Bore Size:
    Bore Size 25 mm
    Port Thread Type:
    G
    Piping:
    Standard Type
    Cylinder Stroke:
    Standard Stroke 50 mm
    Stroke Adjusting Unit Symbol:
    Left Side:A With Adjustment Bolt,With Short Spacer,Right Side:L With Low Load Shock Absorber+Adjustment Bolt,With Short Spacer
    End Lock Position:
    Without End Lock
    Auto Switch:
    Water Resistant 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
