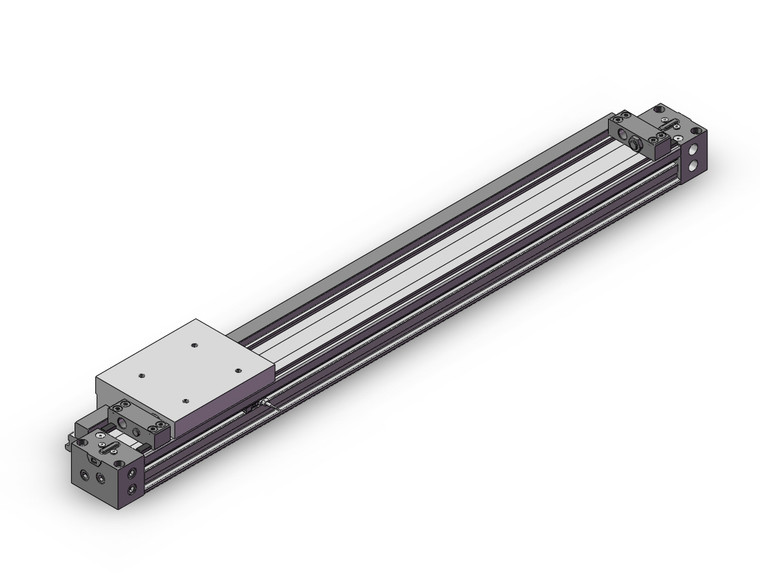

SMC MY1H25TNG-450A6Z-A93VL3 MY1H Series Mechanically Jointed Rodless Cylinder Linear Guide Type

(No reviews yet) Write a Review
SKU:
MY1H25TNG-450A6Z-A93VL3
MPN:
MY1H25TNG-450A6Z-A93VL3
Condition:
New
Bore Size:
Bore Size 25 mm
Port Thread Type:
NPT
Piping:
Centralized Piping Type
Cylinder Stroke:
Standard Stroke 450 mm
Stroke Adjusting Unit Symbol:
Left Side:A With Adjustment Bolt,With Short Spacer,Right Side:A With Adjustment Bolt,With Short Spacer
End Lock Position:
Without End Lock
Auto Switch:
Reed Auto Switch, Grommet, With Indicator Light, 2-wire, Perpendicular, Lead Wire :3m, Apply Voltage :DC24V,AC100V
Made To Order:
Standard
  • SMC MY1H25TNG-450A6Z-A93VL3 Cylinder, Rodless
  • SMC MY1H25TNG-450A6Z-A93VL3 MY1H Series Mechanically Jointed Rodless Cylinder Linear Guide Type
$977.00

Description

MY1H Series Mechanically Jointed Rodless Cylinder Linear Guide Type

  • Piping can be connected from 4 directions on the head cover;
  • Allows on-site piping to suit the installation conditions;
  • Easy adjustment of cushion needle;?Adjustment is easier by changing the cushion needle adjustment;?from side to top;
  • Auto switch can be mounted in any desired position. (D-M9 , D-A9 );
  • New dust seal band improves life;
  • The mounting and performance are the same as before, but the;?weight is reduced
