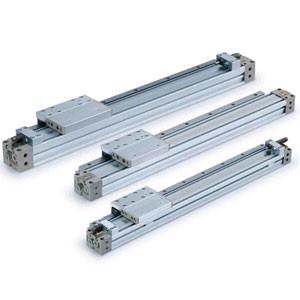

SMC MY1H40-800LZ-M9BL3 MY1H Series Mechanically Jointed Rodless Cylinder Linear Guide Type

SMC MY1H40-800LZ-M9BL3 MY1H Series Mechanically Jointed Rodless Cylinder Linear Guide Type

SMC
SKU:
MY1H40-800LZ-M9BL3
Availability:
Contact us to confirm availability and lead times.
$1,783.15
Condition:
New
Current Stock:
Description

MY1H Series Mechanically Jointed Rodless Cylinder Linear Guide Type

  • Piping can be connected from 4 directions on the head cover;
  • Allows on-site piping to suit the installation conditions;
  • Easy adjustment of cushion needle; Adjustment is easier by changing the cushion needle adjustment; from side to top;
  • Auto switch can be mounted in any desired position. (D-M9 , D-A9 );
  • New dust seal band improves life;
  • The mounting and performance are the same as before, but the; weight is reduced
    • Additional Information
    Bore Size:
    Bore Size 40 mm
    Port Thread Type:
    Rc
    Piping:
    Standard Type
    Stroke Adjusting Unit Symbol:
    Left Side:L With Low Load Shock Absorber+Adjustment Bolt,Right Side:L With Low Load Shock Absorber+Adjustment Bolt
    End Lock Position:
    Without End Lock
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
    Made To Order:
    Standard
