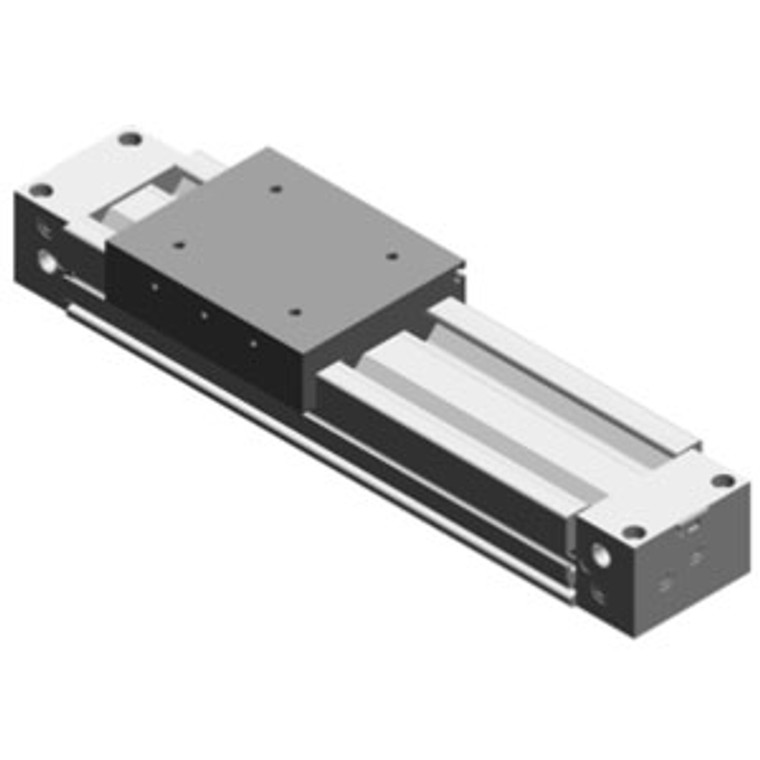

SMC MY1M16-200LS-M9BWM3 Slide Bearing Guide Type

(No reviews yet) Write a Review
SKU:
MY1M16-200LS-M9BWM3
Condition:
New
$415.30

Related Products

Related Products

<h2>Rodless Cylinder, MY1M, Mechanically Jointed - Slide Bearing</h2><p><h3>The MY1M Rodless Cylinders have a one-piece carriage and piston that runs its entire stroke length housed with an inner seal belt to maintain air pressure combined with an outer dust seal band to protect from contaminants. This design offers a compact footprint compared to rod-style cylinders and features a low profile. The integrated slide bearing internal guide provides lateral stability protecting it from side load impacts. Air cushions are standard and external shock absorbers are optional.</h3>- Bore sizes: 16, 20, 25, 32, 40, 50, 63 mm<br>- Stroke lengths: 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1600, 1800, 2000, 3000, 4000, 5000 mm<br>- Minimum operating pressure: 0.15 ~ 0.20 MPa (22 ~ 29 psi)<br>- Speed: 100~1000 mm/sec (w/o stroke adjustment bolt), 100~1500 mm/sec (external shock absorber)<br>- Long stroke option: up to 5000 mm (XB11), up to 3000 mm for 16 bore<br>- Auto switch capable<br>- <p><a href="https://content2.smcetech.com/pdf/MY1.pdf" target="_blank">Series Catalog</a>
