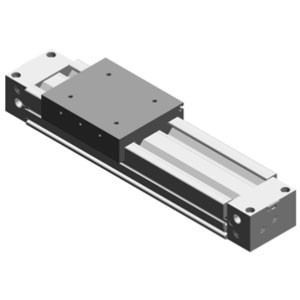

SMC MY1M40-900LS Slide Bearing Guide Type

(No reviews yet) Write a Review
SKU:
MY1M40-900LS
Condition:
New
$733.10

Related Products

Related Products

SMC MY1M40-900L Slide Bearing Guide Type

SMC MY1M40-900L Slide Bearing Guide Type

$814.10
Rodless Cylinder, MY1M, Mechanically Jointed - Slide BearingThe MY1M Rodless Cylinders have a one-piece carriage and piston that runs its entire stroke length housed with an inner seal belt to...
MY1M40-900L
SMC MY1M25TN-900L Slide Bearing Guide Type

SMC MY1M25TN-900L Slide Bearing Guide Type

$480.50
Rodless Cylinder, MY1M, Mechanically Jointed - Slide BearingThe MY1M Rodless Cylinders have a one-piece carriage and piston that runs its entire stroke length housed with an inner seal belt to...
MY1M25TN-900L
<h2>Rodless Cylinder, MY1M, Mechanically Jointed - Slide Bearing</h2><p><h3>The MY1M Rodless Cylinders have a one-piece carriage and piston that runs its entire stroke length housed with an inner seal belt to maintain air pressure combined with an outer dust seal band to protect from contaminants. This design offers a compact footprint compared to rod-style cylinders and features a low profile. The integrated slide bearing internal guide provides lateral stability protecting it from side load impacts. Air cushions are standard and external shock absorbers are optional.</h3>- Bore sizes: 16, 20, 25, 32, 40, 50, 63 mm<br>- Stroke lengths: 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1600, 1800, 2000, 3000, 4000, 5000 mm<br>- Minimum operating pressure: 0.15 ~ 0.20 MPa (22 ~ 29 psi)<br>- Speed: 100~1000 mm/sec (w/o stroke adjustment bolt), 100~1500 mm/sec (external shock absorber)<br>- Long stroke option: up to 5000 mm (XB11), up to 3000 mm for 16 bore<br>- Auto switch capable<br>- <p><a href="https://content2.smcetech.com/pdf/MY1.pdf" target="_blank">Series Catalog</a>

SMC MY1M16-900L Slide Bearing Guide Type

$425.20
Rodless Cylinder, MY1M, Mechanically Jointed - Slide BearingThe MY1M Rodless Cylinders have a one-piece carriage and piston that runs its entire stroke length housed with an inner seal belt to...
MY1M16-900L
