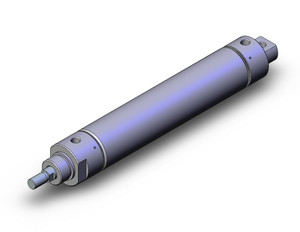

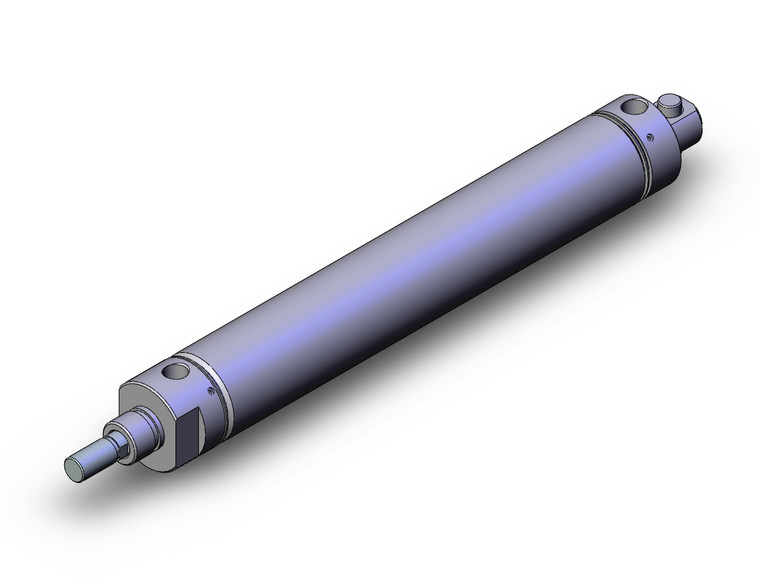

NC(D)M-A, Stainless Steel Body Cylinder w/Adjustable Air Cushion
Air cushion double acting single rod version of our NCM stainless steel cylinders. A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. The NCM is available in 3 mounting styles (front nose, double end, rear pivot). The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 3/4 to 2 and standard strokes from 1/2 to 12 .
- Available in 4 bore sizes- Floating cushion seal
- Cushion adjustment is recessed so it doesn t protrude
- Piston wear ring to extend life
- Auto switch capable
- Manufacturer Part #:
- NCDMC150-0800A
- Actuator Accessory Type:
- Stainless Steel Body Cylinder
- Number of Cores:
- 2 pcs. (Or None in the Case of No Switch)
- Mounting:
- Rear Pivot Mount
- Bore Size:
- 1 1/2"
- Lead or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Stroke:
- 8"
- Auto Switch:
- No Switch
- Magnet:
- Built-in Magnet
