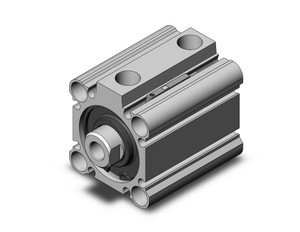

SMC NCDQ2WA12-20DZ-M9PSAPC Compact Cylinder, Ncq2-Z
SMC
$147.05
NC(D)Q2W-Z, Compact Cylinder, Double Acting Double Rod
Standard double acting, double rod version of the NCQ2 compact cylinder. The NCQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
- Double acting, double rod, compact cylinder- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke range (mm): 5 to 100
- Mountings include: Through hole (standard), threaded, foot, and rod flange
- Auto switch capable
- Option:
- Rod End Female Thread
- Actuator Type:
- Compact, Double Acting, Single Rod
- Mounting:
- Both Ends Tapped
- Bore Size:
- 12mm
- Lead or Prewired Connector:
- 0.5m Cord Length, M8-3 Pin Connector
- Stroke:
- 20mm
- Auto Switch:
- Solid State, Gen. Purpose, 3 Wire PNP, Horizontal
- Magnet:
- Built-in
- Auto Switch Qty:
- 2 pcs. [Or None in the Case of No Switch]
- Auto Switch Groove:
- Auto Switch Mounting Grooves
