Description

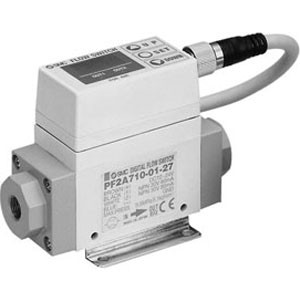

Pf2A7, Digital Air Flow Sensor, 2-Color Display, Ip65, 1-500 Lpm
Pf2A7 Is A Digital Flow Sensor Compatible With Air And Nitrogen. This Is A Legacy Sensor, With Refreshed Feature Sets Offered By The Newer Pfmb And Pfmc Sensors. The 3-Digit Led Display Can Show Either Instantaneous Or Accumulated Flow. The Mounting Bracket Is Integrated Into The Body, While The M12 Lead Wire Is Optional. 2 Switch Outputs Are Included, With An Led Indicator For Each Located Below The Display. Pf2A Is Ip65 Rated, And Ce And Rohs Compliant.
- Flow Ranges (Lpm): 1-10, 5-50, 10-100, 20-200, 50-500- Port Sizes (Rc, Npt, G): 1/8, 1/4, 3/8, 1/2 (Flow Range Dependent)
- Rated Pressure Range (Mpa): -0.05 To 0.75
- Output Options: 2 Pnp Or Npn
- Accuracy: 5% F.S.
- Repeatablility: 1% F.S. Or 2% F.S. (Flow Range Dependent)
-
