Description

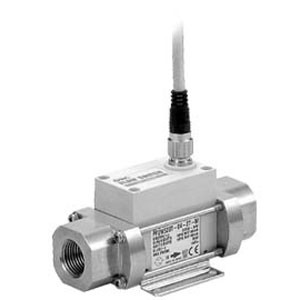

Pf2W5*T, Digital Water Flow Sensor, High-Temp, Remote, Ip65, 0.5-40 Lpm
Pf2W Is A Digital Flow Sensor For Water Or Coolant. This Is A Legacy Sensor, Refreshed In 2009 As Pf3W. T Indicates The Higher Temperature Rating. This Is The Remote Version Of Pf2W7*T, Without A Display. The Mounting Bracket Is Integrated Into The Body, While The M12 Lead Wire Is Optional. Pf2W5 Can Be Paired With A Pf2W200 Or Pf2W300 Remote Monitor To Display Instantaneous Or Accumulated Flow Values. An Optional Analog Output Is Also Available. Pf2W5 Is Ip65 Rated And Ce Compliant.
- Flow Ranges (Lpm): 0.5-4, 2-16, 5-40- Port Sizes (Rc, Npt, G): 3/8, 1/2, 3/4 (Flow Range Dependent)
- Temperature Rating: 0-90 C
- Output Options: 1-5V, 4-20Ma
- Accuracy: 5% F.S.
- Repeatability: 2% F.S.
-
