Description

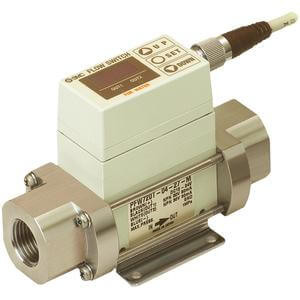

Pf2W7*T, Digital Water Flow Sensor, High-Temp, 2-Color Display, Ip65, 0.5-40 Lpm - Europe Uses
Pf2W7 Is A Digital Flow Sensor For Water Or Coolant. This Is A Legacy Sensor, Refreshed In 2009 As Pf3W. T Indicates The Higher Temperature Rating. The 3-Digit Led Display Can Show Either Instantaneous Or Accumulated Flow. The Mounting Bracket Is Integrated Into The Body, While The M12 Lead Wire Is Optional. 2 Switch Outputs Are Included, With An Led Indicator For Each Located Below The Display. Pf2W7 Is Ip65 Rated And Ce Compliant.
- Flow Ranges (Lpm): 0.5-4, 2-16, 5-40- Port Sizes (Rc, Npt, G): 3/8, 1/2, 3/4 (Flow Range Dependent)
- Temperature Rating: 0-90 C
- Output Options: Npn/Pnp
- Accuracy: 5% F.S.
- Repeatability: 3% F.S.
-
