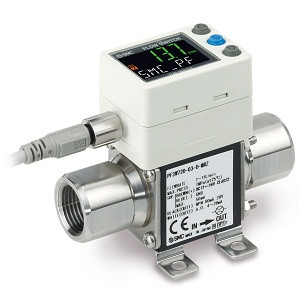

SMC PF3W704S-N03-FTN-MRZ PF3W7-Z Series 3-Color Display Digital Flow Switch for Water Integrated Display

SMC PF3W704S-N03-FTN-MRZ PF3W7-Z Series 3-Color Display Digital Flow Switch for Water Integrated Display

SMC
SKU:
PF3W704S-N03-FTN-MRZ
Availability:
Factory Stock
$455.00
Condition:
New
Current Stock:
Description

PF3W7-Z Series 3-Color Display Digital Flow Switch for Water Integrated Display

  • Output specification variations have been added [New]; PF3W7-Z: Analog voltage 2-output type (flow rate + temperature);???? Analog current 2-output type (flow rate + temperature);
  • Compatible with the PFG200 series 3-screen display 4-channel flow monitor [New];
  • Applicable fluid: Water, Ethylene glycol aqueous solution;
  • Lightweight: Max. 53% reduction (40 L/min, With temperature sensor);
  • IO-Link compatible;
  • 3-color/2-screen display;
  • Compatible with the temperature sensor & flow adjustment valve;
  • Fluid temperature: 0 to 90°C
    • Additional Information
    Type:
    Integrated Display
    Rated Flow Range:
    0.5 To 4 L/min
    Flow Adjustment Valve:
    Yes
    Thread Type:
    NPT
    Port Size:
    3/8
    Output Specifications:
    OUT1:PNP
    Lead Wire:
    Without Lead Wire With M8 Connector
    Remote Sensor Unit:
    Instantaneous Flow Rate:L/min
    Bracket:
    With Bracket
    Calibration Certificate (Only Flow Sensor):
    None
