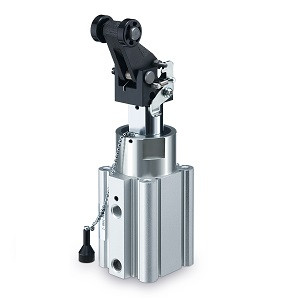

SMC RSDQA32-20TZ RSQ-Z Series Stopper Cylinder Fixed Mounting Height
SMC
$67.05
The SMC RSDQA32-20TZ RSQ-Z Series Stopper Cylinder with Fixed Mounting Height is engineered for precision and versatility in industrial applications. This advanced stopper cylinder offers a range of 10 rod end configurations, allowing engineers to select the optimal shape for specific operational requirements. The innovative design facilitates the mounting of auto switches on four faces of the cylinder body, eliminating the need for additional mounting brackets and accommodating compact auto switches seamlessly.
Engineered for adaptability, the lever-type rod end can be selected to match diverse application needs, ensuring efficient operation across various industrial settings. The RSDQA32-20TZ model also features an easy replacement mechanism for shock absorbers, minimizing downtime and maintenance efforts.
This stopper cylinder supports three types of mounting options: rod end tapped, head end tapped, and through-hole, providing flexibility in installation and integration into existing systems. The SMC RSQ-Z Series is a reliable choice for engineers seeking a robust and adaptable solution for their manufacturing processes.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Both Ends Tapped Style
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- M Thread( 12- 16)
- Cylinder Stroke:
- Standard Stroke 20 mm
- Action:
- Single Acting Spring Extend
- Piston rod end type:
- Round Bar
- Mounting Bolt:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
