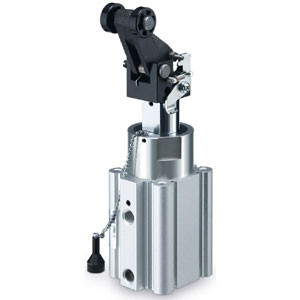

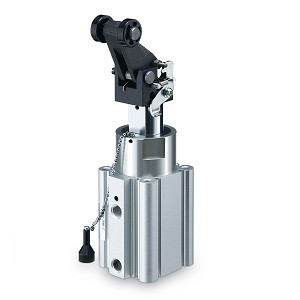

SMC RSDQB20-20TZ RSQ-Z Series Stopper Cylinder with Fixed Mounting Height
SMC
$57.95
The SMC RSDQB20-20TZ RSQ-Z Series Stopper Cylinder with Fixed Mounting Height is engineered for precision and versatility in industrial applications. This advanced stopper cylinder offers a range of 10 rod end configurations, allowing engineers to select the optimal shape for their specific application needs. The innovative design of the RSQ-Z Series enables auto switch mounting on four faces, eliminating the need for additional mounting brackets and accommodating compact auto switches seamlessly.
Engineered for efficiency, the lever-type rod end is adaptable to various applications, ensuring reliable performance. The cylinder's design facilitates the easy replacement of shock absorbers, minimizing downtime and maintenance efforts. With three distinct mounting optionsrod end tapped, head end tapped, and through-holethis stopper cylinder provides flexibility in installation, catering to diverse engineering requirements.
Ideal for manufacturing professionals seeking robust and adaptable solutions, the SMC RSDQB20-20TZ is a testament to precision engineering. Its compact design and versatile mounting options make it a valuable addition to any industrial setup, enhancing productivity and operational efficiency.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Through-hole(Standard)
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- M Thread( 12- 16)
- Cylinder Stroke:
- Standard Stroke 20 mm
- Action:
- Single Acting Spring Extend
- Piston rod end type:
- Round Bar
- Mounting Bolt:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
