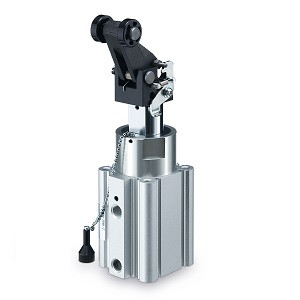

SMC RSDQB32-15DLZ-M9BVL RSQ-Z Series Stopper Cylinder Fixed Mounting Height

SMC RSDQB32-15DLZ-M9BVL RSQ-Z Series Stopper Cylinder Fixed Mounting Height

SMC
SKU:
RSDQB32-15DLZ-M9BVL
$236.45
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

RSQ-Z Series Stopper Cylinder Fixed Mounting Height

  • Various rod end configurations:10 types; Shape can be selected to suit the intended application;
  • The new body allows for auto switch mounting on 4 faces; Mounting brackets are not required. Compact auto switches are mountable;
  • Lever type rod end selected according to applications;
  • Easy replacement of shock absorbers;
  • Three types of mounting; Rod end tapped, Head end tapped, Through-hole
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Through-hole(Standard)
    Bore Size:
    Bore Size 32 mm
    Port Thread Type:
    M Thread( 12- 16)
    Cylinder Stroke:
    Standard Stroke 15 mm
    Action:
    Double Acting
    Piston rod end type:
    Lever (Fixed Absorber Type)
    Mounting Bolt:
    None
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, Perpendicular, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
