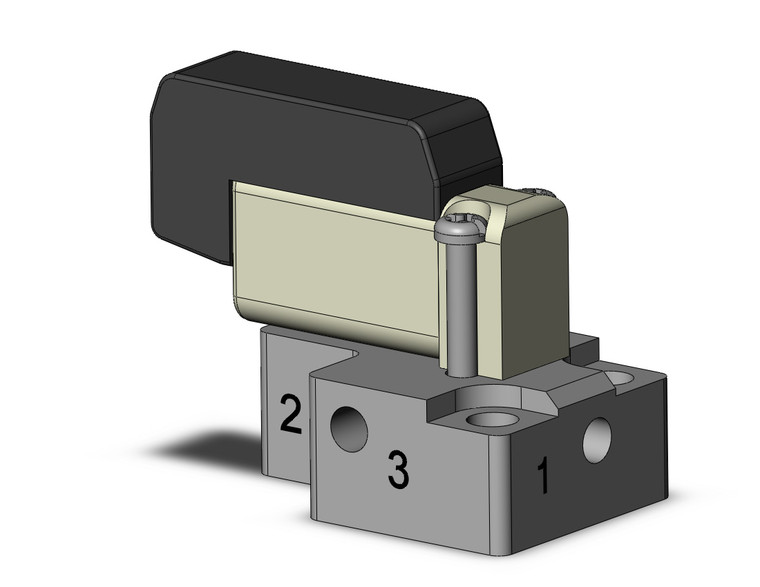

SMC S070B-5FCO-M3 Solenoid Valve

SMC S070B-5FCO-M3 S070 Series 3 Port Solenoid Valve Compact Direct Operated Base Mounted

SMC
SKU:
S070B-5FCO-M3
$43.85
Condition:
New
Current Stock:
Description

S070 Series 3 Port Solenoid Valve Compact Direct Operated Base Mounted

  • 7 mm width compact solenoid valve manifold;
  • Weight of valve alone: 5 g;
  • Single unit specifications, base mounted manifold, body ported manifold can be selected;
  • Manifold type No.: SS073
    • Additional Information
    Body Type:
    Base Mounted With Screws
    Coil Voltage:
    24 VDC
    Power Consumption–Pressure Specification–Flow Rate:
    Power Consumption:0.1 W(With Power Saving Circuit),Maximum Operating Pressure:0.3 Mpa,Cv Factor:0.006
    Electrical Entry:
    Plug Lead Without Connector And With Light/Surge Voltage Suppressor
    Port Size:
    With Sub-plate
    Made To Order:
    Standard
    Lead Wire Length:
    None
