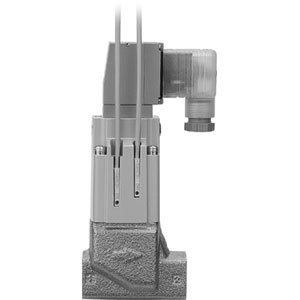

SMC SGC221A-05N10Y-5DOD-M SGC Series Coolant Valve External Pilot Solenoid

SMC SGC221A-05N10Y-5DOD-M SGC Series Coolant Valve External Pilot Solenoid

SMC
SKU:
SGC221A-05N10Y-5DOD-M
$242.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

SGC Series Coolant Valve External Pilot Solenoid

  • High flow type to control coolants (cutting fluid) in machine tools;
  • Low power consumption: 0.35 W (at 24 VDC);
  • Maximum operating pressure: 0.5 MPa, 1 MPa, 1.6 MPa;
  • Service life: 5 million cycles or more (Based on SMC's test condition);
  • CE-compliant;
  • Compatible with G thread (ISO1179-1) as standard;
  • Air operated, external pilot solenoid
    • Additional Information
    Series:
    SGC200
    Valve Type:
    N.C.
    Seal Material:
    NBR
    Pressure Range:
    Pressure range 0 to 0.5 MPa
    Thread Type:
    NPT
    Port Size:
    3/8
    Pilot Valve:
    0.35W Type(V116)
    Rated Voltage:
    24 VDC
    Electrical Entry:
    DIN Terminal Without Connector
    Light/Surge Voltage Suppressor:
    None
    Manual Override:
    Push-turn locking lever type
    Bracket Mounting Position:
    Without Bracket
    Auto switch(For Verifying Whether The Valve Is Open/Closed):
    Without Auto Switch (With Built-in Magnet)
    Lead Wire Length:
    0.5 m
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
