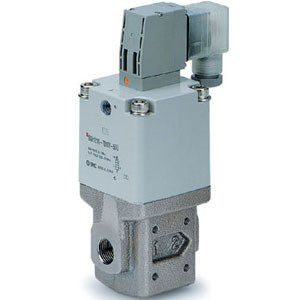

SMC SGH121A-14010H-5D SGH Series Coolant Valve 2-Port Type External Pilot Solenoid

SMC SGH121A-14010H-5D SGH Series Coolant Valve 2-Port Type External Pilot Solenoid

SMC
SKU:
SGH121A-14010H-5D
Availability:
Factory Stock
$904.35
Condition:
New
Current Stock:
Description

SGH Series Coolant Valve 2-Port Type External Pilot Solenoid

  • Max. operating pressure: 3 MPa, 7 MPa, 10 MPa [New]?14MPa [New];
  • Applicable to high-speed grinding and long drilling processes;
  • Coolant valve for high-pressure coolant liquid that is ideal for lubrication, dust blowing, and cooling;
  • Service life: 3 million cycles (Based on SMC’s test conditions);
  • Water hammer: Reduced by 20% (Compared to existing model, VNH series);
  • Power consumption: 0.35 W (24 VDC, V116);
  • The 3-port dual pressure type has been standardized
    • Additional Information
    Series:
    SGH100
    Valve Type:
    N.C.
    Seal Material:
    NBR
    Pressure Range:
    Pressure Range 0 to 14 MPa
    Thread Type:
    Rc
    Bore Size:
    3/8
    Pilot Valve:
    VO307
    Rated Voltage:
    24 VDC
    Electrical Entry:
    DIN Terminal
    Light/Surge Voltage Suppressor:
    None
    Manual Override:
    Push-turn Locking Type
    Bracket:
    Without Bracket
    Connector Entry Direction:
    None
