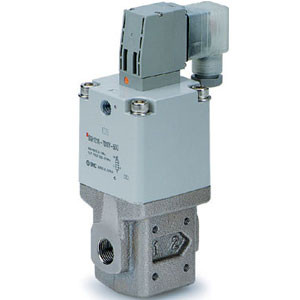

SMC SGH221B-7015Y-5TZ-B1 Coolant Valve, External Pilot

SMC SGH221B-7015Y-5TZ-B1 SGH Series Coolant Valve 2-Port Type External Pilot Solenoid

SMC
SKU:
SGH221B-7015Y-5TZ-B1
Availability:
Factory stock
$959.60
Condition:
New
Current Stock:
Description

SGH Series Coolant Valve 2-Port Type External Pilot Solenoid

  • Max. operating pressure: 3 MPa, 7 MPa, 10 MPa [New]、14MPa [New];
  • Applicable to high-speed grinding and long drilling processes;
  • Coolant valve for high-pressure coolant liquid that is ideal for lubrication, dust blowing, and cooling;
  • Service life: 3 million cycles (Based on SMC’s test conditions);
  • Water hammer: Reduced by 20% (Compared to existing model, VNH series);
  • Power consumption: 0.35 W (24 VDC, V116);
  • The 3-port dual pressure type has been standardized
    • Additional Information
    Series:
    SGH200
    Valve Type:
    N.C.
    Seal Material:
    FKM
    Pressure Range:
    Pressure Range 0 to 7 MPa
    Thread Type:
    Rc
    Bore Size:
    1/2
    Pilot Valve:
    V116
    Rated Voltage:
    24 VDC
    Electrical Entry:
    Conduit Terminal
    Light/Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor(Non-polar Type)
    Manual Override:
    Push-turn Locking Type
    Bracket:
    Bracket on the left side
    Connector Entry Direction:
    None
