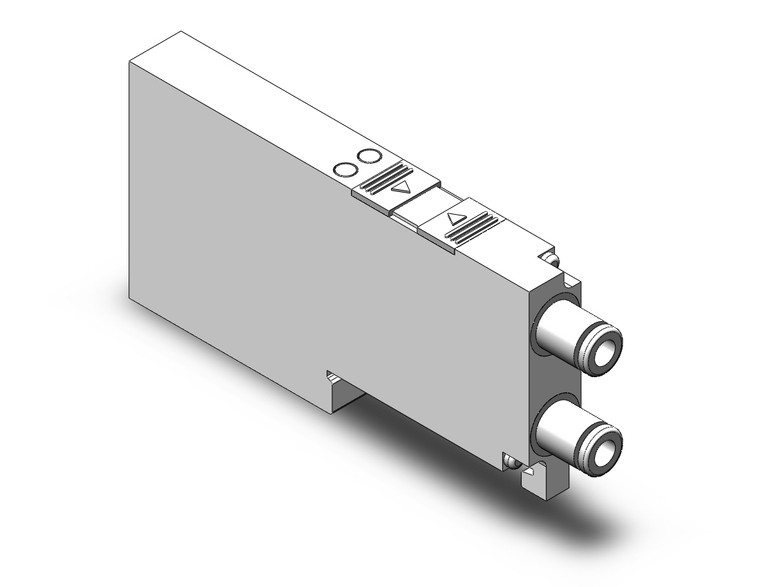

SMC SJ3260R-5FZ-C4 4/5 Port Solenoid Valve

SMC SJ3260R-5FZ-C4 SJ2000/3000 Series Plug-in Cable Type D-sub Connector/Flat Ribbon Cable Solenoid Valves

SMC
SKU:
SJ3260R-5FZ-C4
Availability:
Factory stock
$56.80
Condition:
New
Current Stock:
Description

SJ2000/3000 Series Plug-in Cable Type D-sub Connector/Flat Ribbon Cable Solenoid Valves

  • Low-profile cassette type with baseless structure;
  • Takes up minimal space with a body width of 6.5 mm (SJ1000), 7.5 mm (SJ2000), or 10 mm (SJ3000);
  • SJ1000, SJ2000, and SJ3000 valves can be mounted together;
  • The multi-pin connector makes it easy to add or subtract stations or to exchange valves;
  • One side solenoid;
  • 4-position, dual 3-port specifications are available;
  • Manifold type no.: SS5J1, SS5J2, SS5J3
    • Additional Information
    Series:
    SJ3000
    Type Of Actuation:
    2 Position Double Solenoid
    Pilot Spec.:
    External Pilot
    Back Pressure Check Valve:
    None
    Coil Spec.:
    Standard
    Rated Voltage:
    24 VDC
    Common Specifications:
    Positive Common
    Connector Entry:
    Dedicated For Centralized Wiring,Cable Type
    Light/Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor
    Manual Override:
    Non-locking Push Type
    A,B Port Size:
    Φ4 One-touch Fittings
    Control Type:
    Without Control Method
    Made To Order:
    Standard
