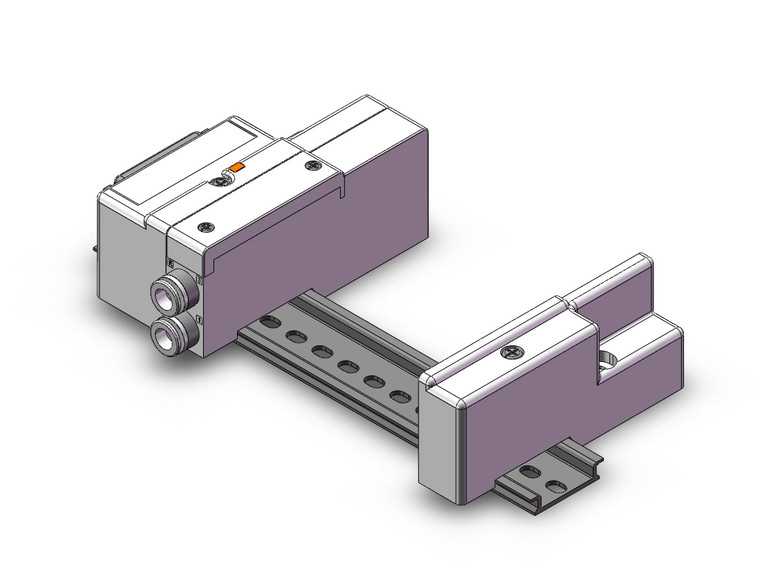

SMC SS5Q13-09FD0-D-Q SQ1000 Series 5 Port Solenoid Valve Plug-In Unit Manifold
SMC
$152.40
The SMC SS5Q13-09FD0-D-Q SQ1000 Series 5 Port Solenoid Valve Plug-In Unit Manifold is designed for efficiency and ease of use. With a power-saving feature of just 0.4 W in standard mode, this manifold is both energy-efficient and cost-effective. It offers flexibility with the ability to easily add or remove valve stations, making it adaptable to your specific needs. Maintenance is straightforward, as the valves can be mounted with a single screw, and the clip type One-touch fittings can be replaced effortlessly. The connector entry direction is adjustable with a simple push, enhancing its versatility. This unit includes a 4 position dual 3 port valve and offers an optional built-in back pressure check valve for added functionality. Compatible with manifold types SS5Q13, SS5Q14, SS5Q23, and SS5Q24, this product is a reliable choice for various applications.
- No. Of Stations:
- 9 Stations
- Electrical Entry:
- Lead Wire Connector Location:D Side,Cable/Si Unit Specifications:D-Sub Connector 25P Kit,Without Cable
- Manifold Mounting:
- DIN Rail Mounting
- Option:Back Pressure Check Valve:
- None
- Option:Special Wiring Specifications:
- None
- Option:External Pilot Specifications:
- None
- Option:Built-In Silencer:
- None
- 1(P),3(R)Port Size:
- 1P,3R Port,One-touch Fittings For 8
- CE-compliant:
- CE-compliant
