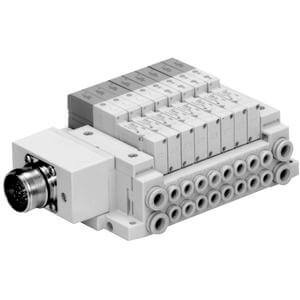

SMC SS5V1-W10CD-06BS-C6-D 5 Port Solenoid Valve Manifold

The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. Maximum of 24 solenoids can be connected to SS5V1-W10CD-* manifold.

AutoCAD File
