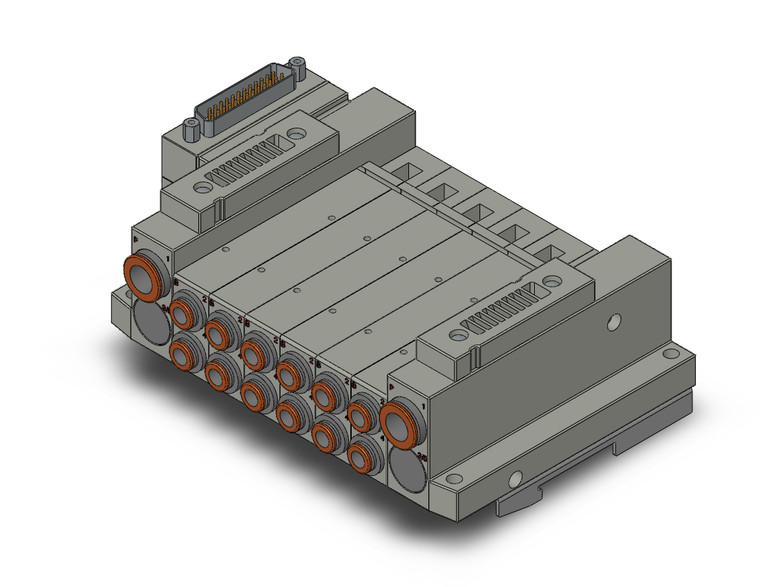

SMC SS5V2-10FD1-06BS-N7-D0 Ss5V 06 Station Manifold, Tie-Rod Base

SMC SS5V2-10FD1-06BS-N7-D0 SV Series D-sub Connector Manifold Tie-rod Base

SMC
SKU:
SS5V2-10FD1-06BS-N7-D0
Availability:
Factory Stock
$342.30
Condition:
New
Current Stock:
Description

SMC SS5V2-10FD1-06BS-N7-D0 - SV Series SV1000/2000 D-Sub Connector Manifold, 6-Station, Tie-Rod Base

The SMC SS5V2-10FD1-06BS-N7-D0 provides centralized valve control for streamlined PLC integration. This 6-station tie-rod base manifold is configured for SV1000/2000 series plug-in solenoid valves.

Key Features & Specifications

  • D-sub connector (N7) - simplified PLC wiring
  • Tie-rod base - secure, vibration-resistant assembly
  • Plug-in valve design - individual replacement without disturbing piping
  • Bottom ported piping - flexible installation orientation
  • Compact multi-station layout - reduced footprint
  • 6 Stations | SV1000/2000 | D-Sub Connector | Bottom Ported

Typical Applications

Ideal for automated assembly lines and multi-station pneumatic control.

Manufactured by SMC Corporation.

Additional Information
Series:
SV2000
Connector Entry Direction:
Upward
Valve Stations:
6 Stations
P, E Port Outlets:
Both Sides
Pilot Type:
Internal Pilot,Built-in Silencer
A/B Port Size:
A,B Port:One-touch Fitting For 1/4
Mounting:
DIN Rail Mounting (Without DIN rail)
