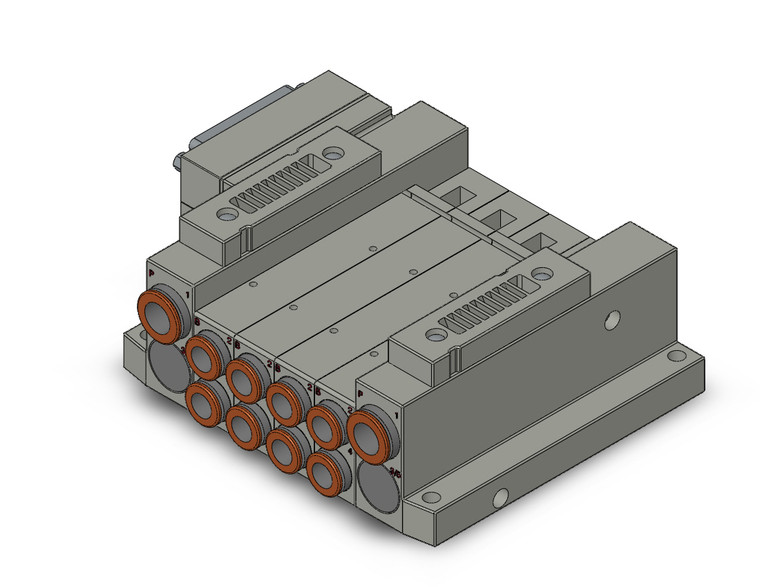

SMC SS5V2-10FD2-04BS-C8 Ss5V 04 Station Manifold, Tie-Rod Base

SMC SS5V2-10FD2-04BS-C8 SV Series D-sub Connector Manifold Tie-rod Base

SMC
SKU:
SS5V2-10FD2-04BS-C8
Availability:
Factory stock
$248.45
Condition:
New
Current Stock:
Description

SMC SS5V2-10FD2-04BS-C8 - SV Series SV1000/2000 D-Sub Connector Manifold, 4-Station, Tie-Rod Base

The SMC SS5V2-10FD2-04BS-C8 offers simplified electrical connection for reduced wiring complexity. This 4-station tie-rod base manifold is configured for SV1000/2000 series plug-in solenoid valves.

Key Features & Specifications

  • D-sub connector (C8) - simplified PLC wiring
  • Tie-rod base - secure, vibration-resistant assembly
  • Plug-in valve design - individual replacement without disturbing piping
  • Bottom ported piping - flexible installation orientation
  • Compact multi-station layout - reduced footprint
  • 4 Stations | SV1000/2000 | D-Sub Connector | Bottom Ported

Typical Applications

Designed for high-density pneumatic control panels.

Manufactured by SMC Corporation.

Additional Information
Series:
SV2000
Connector Entry Direction:
Lateral
Valve Stations:
4 Stations
P, E Port Outlets:
Both Sides
Pilot Type:
Internal Pilot,Built-in Silencer
A/B Port Size:
A,B Port:One-touch Fitting For 8
Mounting:
Direct Mounting
