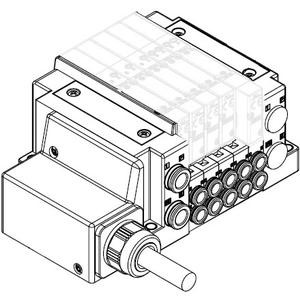

SMC SS5Y3-10L13-08BS-N7D0 SY3000·5000·7000 Series Series Plug-in Connector Connecting Base Lead Wire Type 10L/11L
SMC
$231.20
The SMC SS5Y3-10L13-08BS-N7D0 is a versatile and efficient plug-in connector from the SY3000·5000·7000 Series, designed to optimize your pneumatic systems. This connecting base features a lead wire type of 10L/11L, offering a significant flow increase that allows for a reduction in valve size, ultimately saving both energy and space. With a power consumption of just 0.1 watts when using the power-saving circuit and 0.35 watts in standard mode, this connector is engineered for efficiency. It boasts an impressive service life, capable of enduring up to 200 million cycles with a metal seal and 70 million cycles with a rubber seal. The product includes a newly added plug-in metal base (IP40) and a plug-in connector connecting base (IP67), ensuring robust and reliable performance. Compatible with manifold types SS5Y3, SS5Y5, and SS5Y7, this connector is an ideal choice for enhancing the functionality and longevity of your pneumatic applications.
- Series:
- SY3000
- Type:
- Side Ported
- Number Of Cores(Lead Wire):
- 34 Cores
- Lead Wire Length:
- 3 m
- Valve Stations:
- 8 Stations
- P, E Port Outlets:
- Both Sides
- SUP/EXH Block Assembly Specifications:
- Internal Pilot,Built-in Silencer
- A/B Port Size:
- One-touch Fitting For 1/4
- Mounting And Option:
- DIN Rail Mounting, Without Name Plate, With bracket (without DIN rail)
