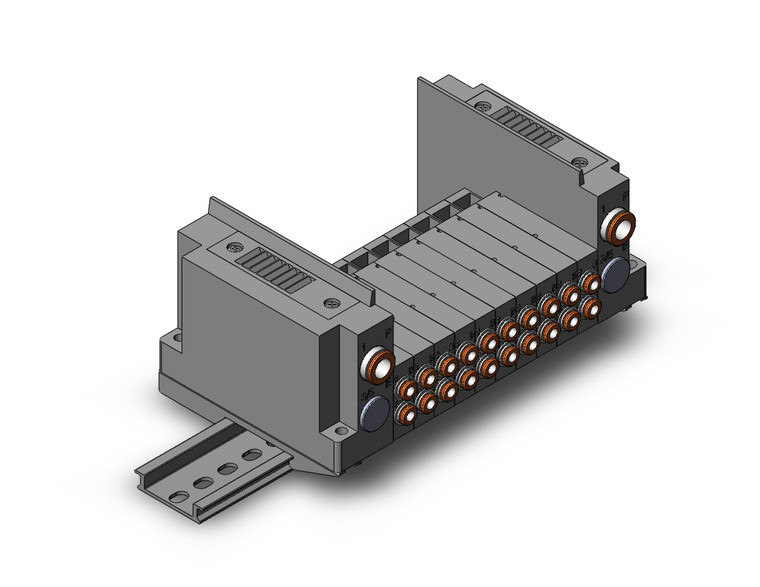

SMC SS5Y3-10S0-10BS-C4D0 SY3000/5000/7000 Series 5 Port Solenoid Valve Plug-in Connector Connecting Base EX500 Gateway Decentralized System 2 (128 Points) Type 10/11
SMC
$224.20
The SMC SS5Y3-10S0-10BS-C4D0 is a versatile and efficient component from the SY3000/5000/7000 Series, designed to enhance your pneumatic systems with its advanced features. This 5 Port Solenoid Valve Plug-in Connector Connecting Base is part of the EX500 Gateway Decentralized System 2, offering a robust solution with 128 Points Type 10/11.
Key features include a significant flow increase that allows for a reduction in valve size, leading to energy and space savings. The power consumption is impressively low, with options of 0.1 w when using the power-saving circuit and 0.35 w in standard mode. The product boasts a remarkable service life, with metal seals lasting up to 200 million cycles and rubber seals up to 70 million cycles.
The design includes a newly added plug-in sub-plate with a plug-in metal base rated at IP40 and a plug-in connector connecting base rated at IP67, ensuring durability and reliability in various environments. Compatible manifold types include SS5Y3, SS5Y5, and SS5Y7, making it a flexible choice for different applications.
- Series:
- SY3000
- Type:
- Side Ported
- Kit Type:
- Serial Transmission,EX500 Gateway Decentralized System 2 (128 Points)
- SI Unit Specification:
- Without SI Unit
- Valve Stations:
- 10 Stations
- P,E Port Entry:
- Both Sides
- SUP/EXH Block Assembly:
- Internal Pilot,Built-in Silencer
- A,B Port Size:
- Straight,Metric: 4 One-touch Fitting
- Mounting And Option:
- DIN Rail Mounting,Without Name Plate,Without Station Number
- DIN Rail Option:
- With DIN Bracket,Without DIN Rail
