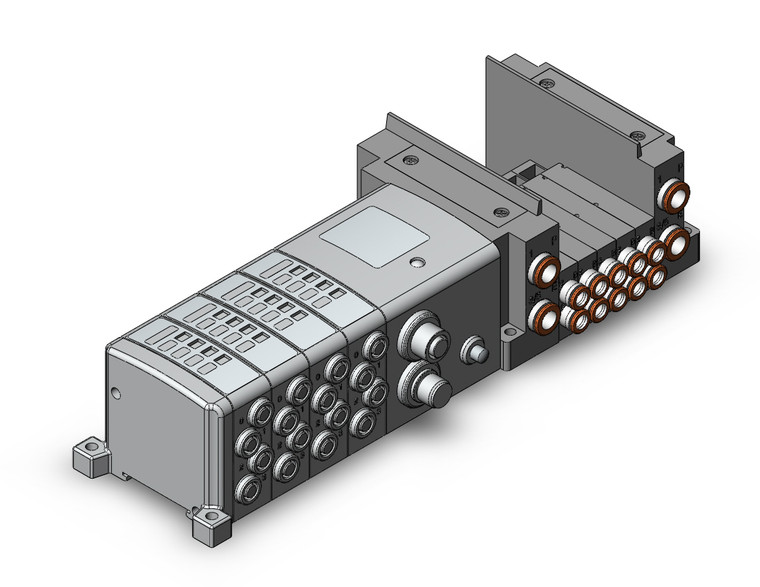

SMC SS5Y3-10SZE4F-05F-N7AA 4/5 port solenoid valve ss5y3 5 sta manifold base

SMC SS5Y3-10SZE4F-05F-N7AA SY3000·5000·7000 Series Plug-in Connector Connecting Base EX250 Type 10/11

SMC
SKU:
SS5Y3-10SZE4F-05F-N7AA
Availability:
Contact us to confirm availability and lead times.
$1,289.35
Condition:
New
Current Stock:
Description

SY3000·5000·7000 Series Plug-in Connector Connecting Base EX250 Type 10/11

  • Thanks to the flow increase, valve size can be reduced;
  • Saves energy and space;
  • Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard);
  • Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal);
  • Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector ; connecting base (IP67);
  • Manifold type No.: SS5Y3, SS5Y5, SS5Y7
    • Additional Information
    Series:
    SY3000
    Type:
    Side Ported
    SI Unit:
    EtherNet/IP(Negative Common)
    Input Block Stations:
    4 Stations
    Input Block Type:
    NPN Input(Negative Common)M8,4 Inputs
    Valve Stations:
    5 Stations
    P, E Port Entry, SUP/EXH Block Assembly:
    P, E Port Entry Both Sides(2 To 24 Stations)Internal Pilot, Built-in Silencer
    A/B Port Size:
    One-touch Fitting For 1/4
    Mounting And Option:
    Name plate (With Station Number)
